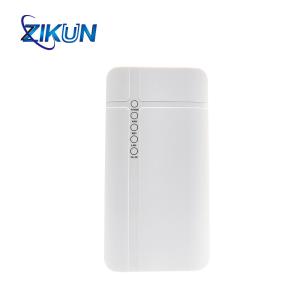

Outdoor CPE ZC-CR501 4G CPE Router LTE CAT4 WiFi4 Stable Performance
Product Description
ZC-CR501 4G LTE Router is a highly advanced 4G outdoor CPE Router, it provides a high throughput data transmission network for residential, business and enterprise users, Customers enjoy an easy plug & play broadband access solution.
Highlights
- Qualcomm Multimode LTE Chipset, Support world mode network, TDD-LTE/FDD-LTE/UMTS/EDGE/GSM
- WiFi MIMO 2*2,up to 300Mbps
- LTE CAT4 MIMO 2*2, up to 150Mbps
- 1 RJ45 for LAN and 1 RJ45 for WAN
- IP66
- Up to 32 users access to WiFi.
ZC-CR501 4G LTE CAT4 Outdoor CPE
LTE CAT4 | Outdoor CPE | WiFi4
Easy to Install, Plug & Play
ZC-CR501 4G LTE CAT4 Router is installed outdoor or near the window to receive 4G signal better,especially in 4G signal weak coverage area. It’s LED indicator can indicate signal strength which is convenient for user to find a best position to get better 4G signal. Flexible installation: wall and pole mounted.
4G Experience, Say No to Weak Signal
ZC-CR501 4G Outdoor Cat4 Wireless WiFi Routers, which is a cost-effective device with built-in antennas, It’s specially designed for rural, mountainous, plain and other areas with weak signal.
Specifications
Platform
| WiFi CHIP | RTL8192 ,802.11 b/g/n , 300Mbps |
| LTE CHIP | MDM9207 , CAT4 , 150Mbps |
Technical
| TDD-LTE | 3GPP,3GPP2 Release10,Category 4,up to 150M DL and 50Mbps UL |
| FDD-LTE | 3GPP,3GPP2 Release10,Category4,up to 150M DL and 50Mbps UL |
| DC-HSPA+ | 3GPP,3GPP2 Release8, up to 21Mbps ,category 24,5.76Mbps UL |
| HSPA+ | 3GPP,3GPP2 Release7, up to 14.4Mbps ,category 10,5.76Mbps UL |
| HSPA | 3GPP,3GPP2 Release6, up to 7.2Mbps DL,category 7,8,5.76Mbps UL |
| UMTS | 3GPP Release4, up to 384 Kbps DL and UL |
| EDGE | 3GPP Release4, Multislot class 12, up to 237 Kbps |
| GPRS | 3GPP Release4, Multislot class 10, up to 85.6Kbps |
Frequency Band
| TDD-LTE | NA |
| FDD-LTE | B2, B4, B5, B7 |
| UMTS | B2, B4, B5 |
| GSM | NA |
Interface
| LED | Power*1, 4G/3G*1, WIFI*1, WAN*1, SIGN*1, SMS*1 |
| Key | Reset |
| WAN | 1*RJ45 |
| LAN | 1*RJ45 |
| Power | 12V/1A |
Environment
| Storage Temperature | -40˚C~85˚C |
| Operator Temperature | -40˚C~75˚C |
Interface
